The contrast between Toronto's deep glacial till deposits in North York and the shallow weathered shale profiles along the Scarborough Bluffs illustrates why residual soil characterization is essential. While downtown towers rest on competent bedrock, projects in areas like Etobicoke or the Don Valley often encounter soils that retain the fabric of their parent rock but behave differently under load. Our team profiles the complete weathering sequence from bedrock to surface, identifying how mineral alteration and leaching affect bearing capacity. Before foundation design proceeds, we correlate these profiles with ensayo SPT blow counts and estudio de mecánica de suelos to map strength variability across the site.
Residual soils in Toronto can lose 40% of shear strength within the upper 3 m due to weathering — characterization at each horizon is non-negotiable for safe foundation design.
Methodology and scope
Toronto's humid continental climate drives deep chemical weathering during summer months, while freeze-thaw cycles in winter fracture the upper soil mantle. This seasonal action produces residual profiles where clay minerals like illite and chlorite dominate the matrix, often with variable sand content from glacial reworking. Our characterization protocol follows CFEM for visual-manual description, then applies X-ray diffraction to quantify clay mineralogy and Atterberg limits per CSA A23.2-2A to classify plasticity.
Mineralogical analysis via XRD to identify swelling potential
Consolidation testing for collapse behavior in partially saturated horizons
Direct shear and triaxial tests on undisturbed samples from each weathering zone
These data feed directly into NBCC 2020 seismic site classification and the resistividad eléctrica SEV survey we sometimes run to map weathering fronts without disturbance.

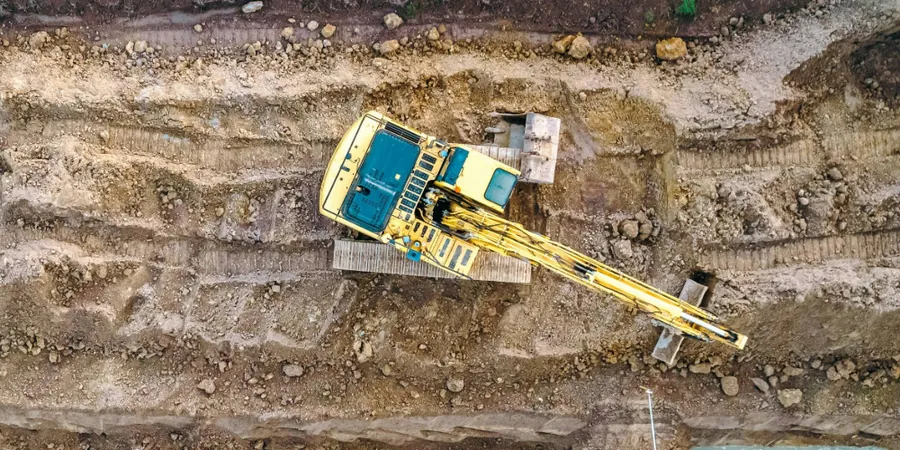

Technical reference image — Toronto
Local considerations
Toronto's post-war suburban expansion pushed development onto the weathered till plains north of Steeles Avenue, where residual soil profiles were often ignored in favor of assumed uniform bearing pressures. Several basement slab heave cases in the 1990s traced back to partially saturated residual clays that swelled after site grading removed the protective desiccated crust. More recently, excavation failures along the Eglinton Crosstown LRT encountered relict joint sets within weathered shale that controlled wedge stability. Our characterization identifies these relict structures and quantifies how saturation during construction reduces effective stress, allowing us to prescribe drainage or estabilidad de taludes measures before mobilization.
XRD and SEM analysis to identify clay mineralogy, weathering products, and cementation agents. We correlate mineral assemblages with index properties to predict swell-shrink behavior and collapse potential.
02
Strength Profile Testing
Multi-depth direct shear and triaxial testing on undisturbed samples recovered from each weathering horizon. Results include peak and residual friction angles, cohesion intercepts, and stress-strain curves.
03
In-Situ Weathering Mapping
Combined CPTu and resistivity surveys to delineate weathering fronts, relict fractures, and perched water tables. Output is a 3D model of weathering grade distribution across the site.
What is the difference between residual soil characterization and standard geotechnical investigation?
Residual soil characterization focuses on the weathering profile from fresh bedrock to surface soil, measuring how mineral alteration, leaching, and relict structure change engineering properties with depth. Standard investigations often treat the profile as uniform layers; our method assigns separate strength and stiffness parameters to each weathering horizon, which is critical for shallow foundations, slope cuts, and excavation support in Toronto's weathered till and shale formations.
How much does residual soil characterization cost for a typical Toronto residential project?
For a standard single-family lot in Toronto, the full characterization package including XRD analysis, Atterberg limits, and triaxial testing on three horizons ranges between CA$1,050 and CA$4,000. Larger subdivisions or sites with complex weathering zones increase the cost due to additional boreholes and laboratory testing volume. Contact us with your project scope for a firm quote.
Which ASTM standards apply specifically to residual soil testing in Canada?
The primary standards are CFEM for visual-manual description, CSA A23.2-2A for Atterberg limits, and CSA + CSA + CSA + CSA + ASTM D2850 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)/D4767 for triaxial shear strength. For mineralogy we follow ASTM C1365 for quantitative XRD analysis. The results tie directly into NBCC 2020 seismic site classification (Section 4.1.8), which uses average shear wave velocity or SPT N-values to assign site class. No Canadian-specific residual soil standard exists, so the ASTM suite with local code compliance is the accepted practice.
Can residual soil characterization detect swelling or collapse potential before construction?
Yes. We measure free swell index (ASTM D4829) and collapse potential (ASTM D5333 (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4)) on undisturbed samples from each weathering zone. Residual clay horizons with high illite content and low plasticity index often exhibit moderate swelling, while partially saturated silt-rich zones can collapse upon wetting. Our report quantifies the magnitude of movement and recommends ground improvement or foundation solutions to mitigate damage.
Location and service area
We serve projects across Toronto and its metropolitan area.
